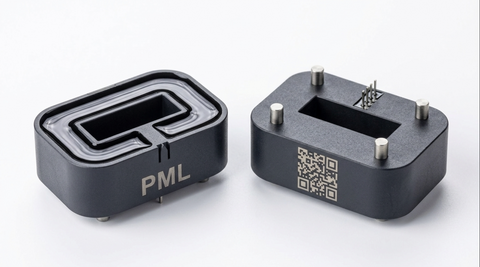

HNRC Series PCB Mount Current Sensor
Rs.0.00
Available
Cost-optimised with <1.5% FS error across 300A–1000A in both 5V and 3.3V versions, ideal for scalable, price-sensitive applications.
The HNRC Series is the rectangular-footprint version of our cost-effective line.
Key Specifications
- Footprint: Rectangular
- Current Range: 300A–1000A across 6 standard models
- Feature: Cost Effective
- Accuracy: <1.5% FS
- Measurement: AC / DC / Pulsed DC
Select Your Model & Download Its Datasheet
Choose your model from the option above to add it to your enquiry. Every model's full datasheet is linked below.
| Model | Rated Current | Output Voltage | Accuracy | Datasheet |
|---|---|---|---|---|
| HNRC-500 | 500A (min. 300A) | 5V | <1.5% FS | Download PDF |
| HNRC-800 | 800A (min. 500A) | 5V | <1.5% FS | Download PDF |
| HNRC-1000 | 1000A (min. 700A) | 5V | <1.5% FS | Download PDF |
| HNRC-500L | 500A (min. 300A) | 3.3V | <1.5% FS | Download PDF |
| HNRC-800L | 800A (min. 500A) | 3.3V | <1.5% FS | Download PDF |
| HNRC-1000L | 1000A (min. 700A) | 3.3V | <1.5% FS | Download PDF |
Why Buy From PML
- 65+ years of magnetic and sensing expertise.
- ISO-certified manufacturing with stringent quality control.
- Global compliance — RoHS, REACH and UL94 V0 standards met as standard.
Need a custom specification? Talk to our engineering team.
