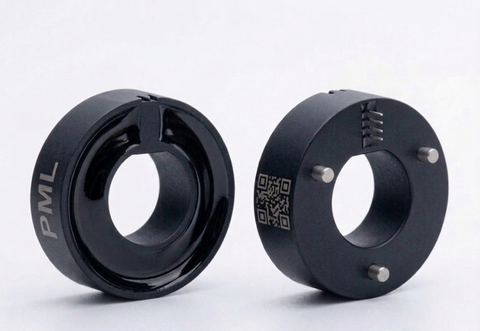

HNCB Series PCB Mount Current Sensor
Rs.0.00
Available
Engineered for extremely fast response, 100A–1001A, with industry-leading <1% FS error and dedicated fast-response architecture.
The HNCB Series is built for the moments that matter in microseconds: short-circuit protection, fast-transient motor drives.
Key Specifications
- Footprint: Circular
- Current Range: 100A–1001A across 6 standard models
- Feature: Fast Response
- Accuracy: <1% FS
- Measurement: AC / DC / Pulsed DC
Select Your Model & Download Its Datasheet
Choose your model from the option above to add it to your enquiry. Every model's full datasheet is linked below.
| Model | Rated Current | Output Voltage | Accuracy | Datasheet |
|---|---|---|---|---|
| HNCB-100 | 100A (min. 80A) | 5V | <1.5% FS | Contact us |
| HNCB-500 | 500A (min. 300A) | 5V | <1% FS | Download PDF |
| HNCB-800 | 800A (min. 500A) | 5V | <1% FS | Download PDF |
| HNCB-900 | 900A (min. 600A) | 5V | <1% FS | Download PDF |
| HNCB-1000 | 1000A (min. 700A) | 5V | <1% FS | Download PDF |
| HNCB-1001 | 1000A (min. 700A) | 5V | <1% FS | Contact us |
Why Buy From PML
- 65+ years of magnetic and sensing expertise.
- ISO-certified manufacturing with stringent quality control.
- Global compliance — RoHS, REACH and UL94 V0 standards met as standard.
Need a custom specification? Talk to our engineering team.
