Super Alloys
Rely on PML IN625 superalloy for exceptional heat and corrosion resistance across demanding environments.
Excellent fatigue and heat resistance, ideal for demanding aerospace applications with excellent weldability and oxidation resistance.
Melting of virgin elements to make ingots of IN625 alloy by Vacuum Induction melting (VIM)
Alloy chemistry and ingot specifications are finalized as per application requirements.
As per customer requirements, mould design carried out and planned for charge preparation, charge sequences in VIM furnace. Careful selection of raw materials are the prime factor to achieve specified chemistry of an alloy.
Virgin elements are charged into the VIM furnace either in air or under vacuum, with precise adjustments made for trace element additions during melting.
The melt is poured under vacuum into precision-engineered molds using an automatic tilting mechanism for defect-free solidification. With online temperature, Spectro, and oxygen data, we meticulously control melting and refining to achieve the specified ingot composition.
Post-casting processes include surface treatment, cropping, and preparation of ingots for downstream processing.
Each ingot undergoes rigorous inspection, precision processing, and custom packaging according to the requirements.
Properties
Performs under pressure—resistant to saline, heat, and mechanical stress in critical environments.
| Alloy | Mechanical Properties | PML alloy: as cast* | After Heat treatment* |
| PML IN625 | Rockwell Hardness (HRC) | 27 HRC | 24 HRC |
| Tensile Strength Ultimate (UTS) | 1000 MPa | 960 MPa | |
| Tensile Strength Yield (YS) | 720 MPa | 680 MPa | |
| Elongation Break | 33% (Mean) | 34% | |
| *Typical | Reduction of Area | Not applicable | 40% |
Process Capability
Custom ingot shapes and batch sizes tailored to exact customer specifications.
Input Batch size | Output | Alloying Elements | Chemistry tolerance | Impurities Max |
30 kgs to 600 kgs | Ingot of required shape as per customers requirement | Cr, Mo, Nb, Ta | +/- 0.5 % for Higher level % (Above 2 digit) and +/- 0.3 % for lower level % (Single digit) | Oxygen < 25ppm Hydrogen < 3ppm Nitrogen < 50ppm All other impurities < 50 ppm |

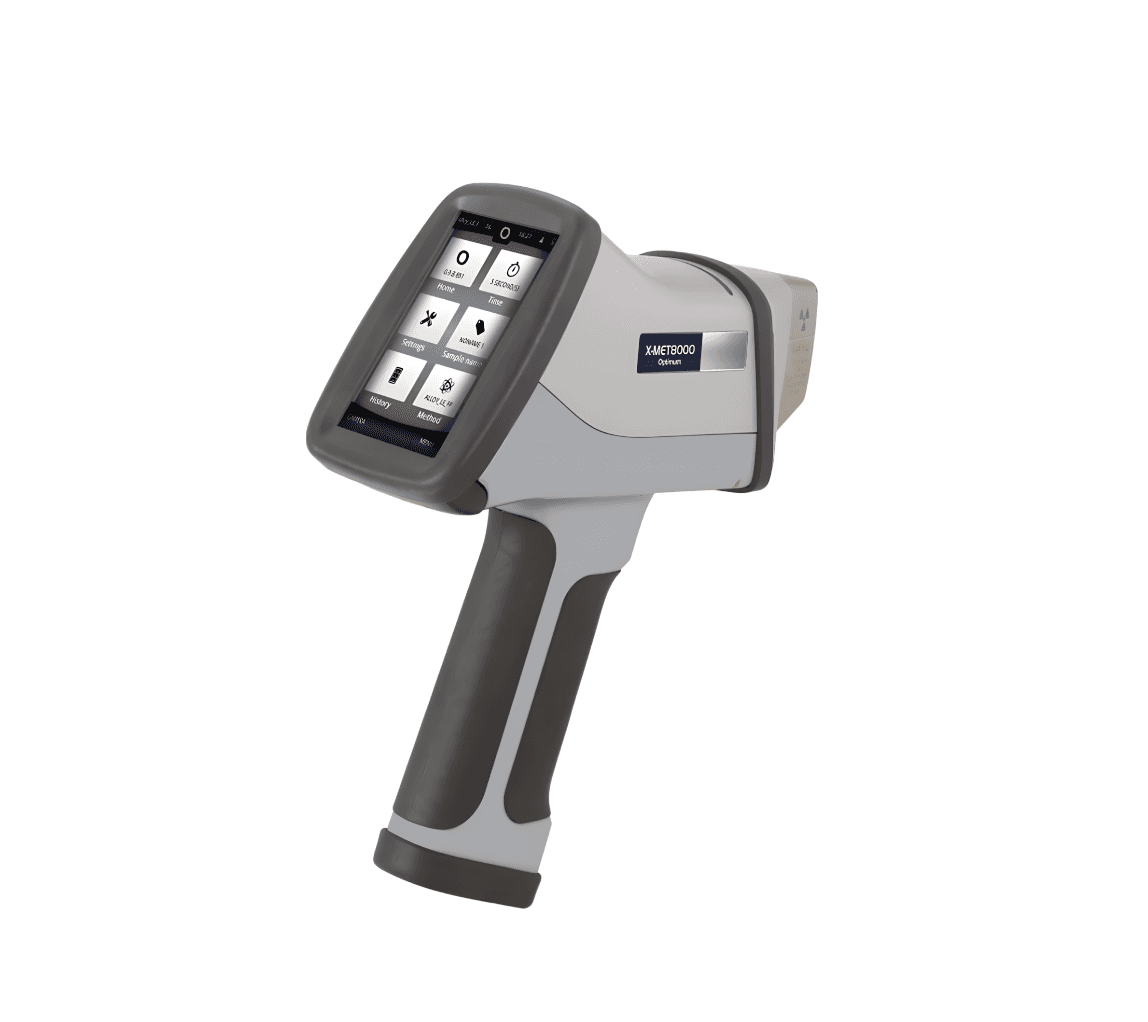

Chemical analysis performed using Ametek Spectromaxx & 100% PMI testing via X-MET8000 XRF Analyzer
Technical Specifications
Engineered to meet demanding specs with consistent quality and adaptable performance.
Elements | UNS N0 6625 Standard |
|
| Min | Max |
Chromium | 20% | 23% |
Molybdenum | 8% | 10% |
Nickel | 58% | – |
Niobium | 3.15% | 4.15% |
Iron | — | 5.0% |
Carbon | — | 0.05% |
Silicon | — | 0.5% |
Manganese | — | 0.1% |
Sulphur | — | 0.01% |
Oxygen | — | 300 ppm |
Nitrogen | — | 300 ppm |
Hydrogen | — | 10 ppm |
Aluminium | — | 0.4% |
Titanium | — | 0.4% |
Boron | — | 0.01% |
Cobalt | — | 1% |
With over six decades of expertise, PML delivers high-performance component technologies and precision solutions trusted across critical industries.
ISO 45001
Occupational Health and Safety (OH&S) management systems
ISO 14001
Environmental Management Systems (EMS)
ISO 9001
Quality Management Systems (QMS)
IATF 16949
International Standard for Automotive Management Systems
AS 9100
Aerospace Quality Management System (QMS)
A super alloy is a high-performance material known for its exceptional mechanical strength, resistance to high temperatures, corrosion, and oxidation. These alloys are predominantly used in extreme environments such as aerospace, automotive, power generation, and chemical processing industries.

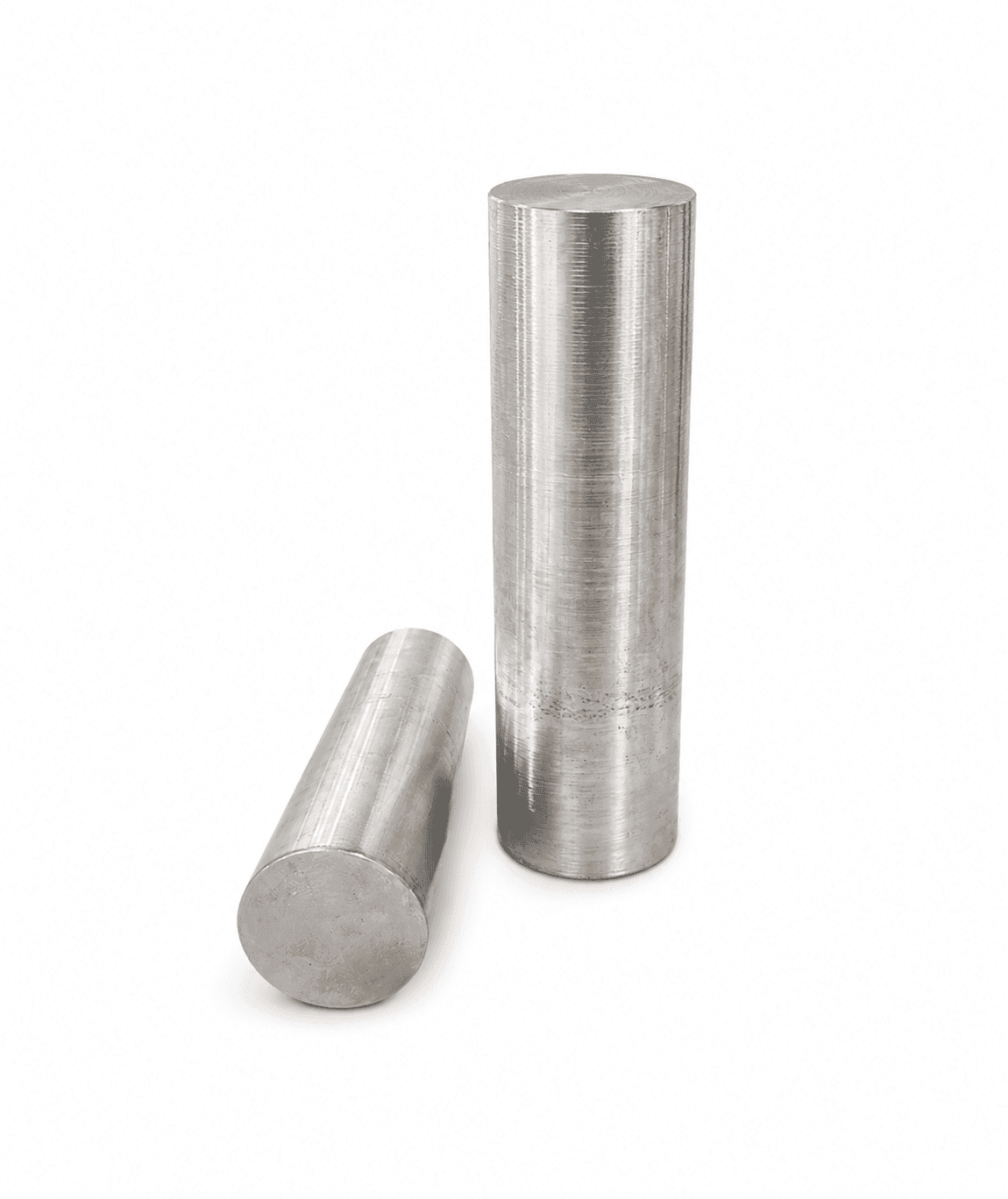

Rely on PML IN713C superalloy for exceptional heat and corrosion resistance across demanding environments.

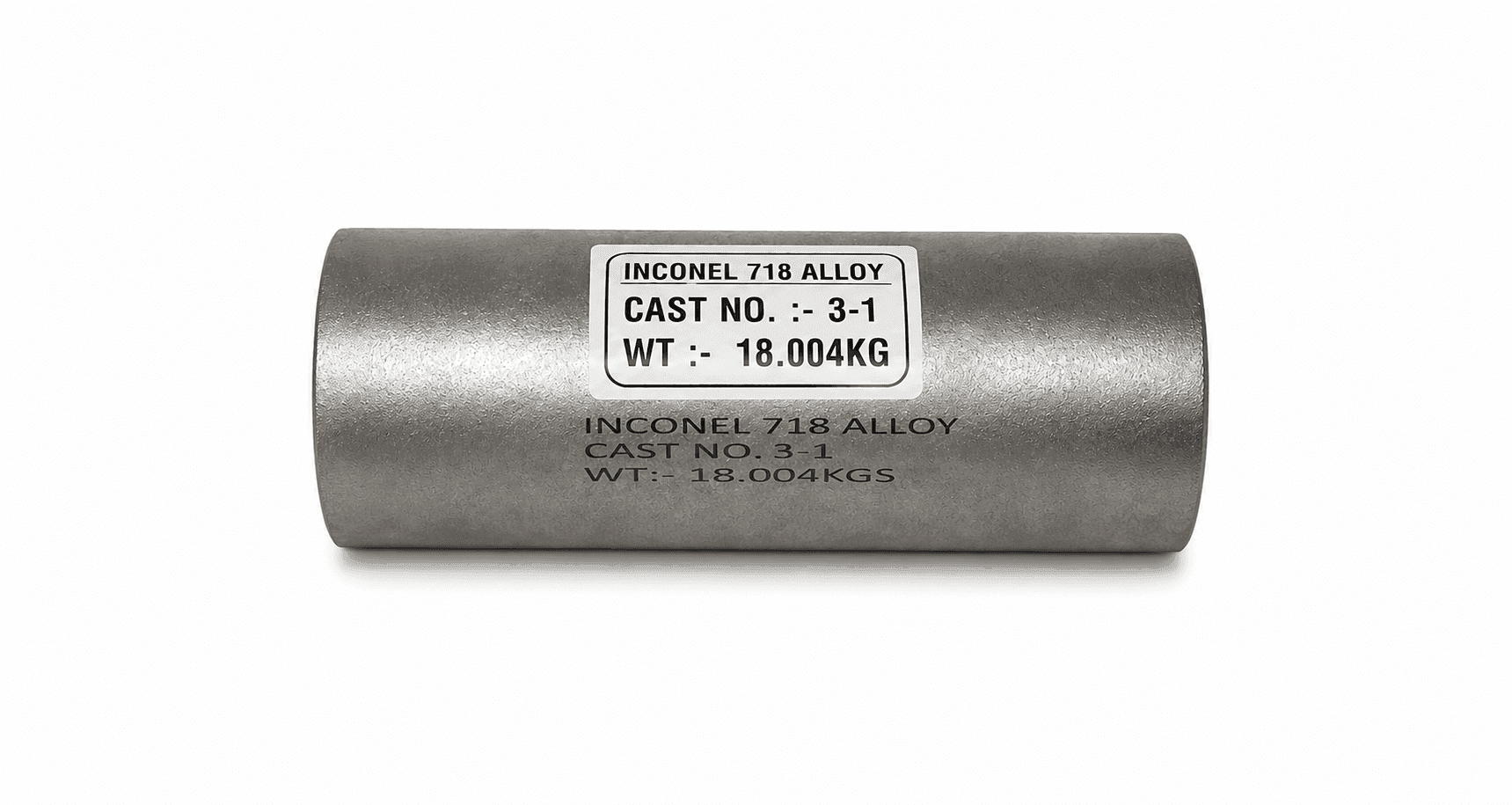

Rely on PML IN718 superalloy for exceptional heat and corrosion resistance across demanding environments.

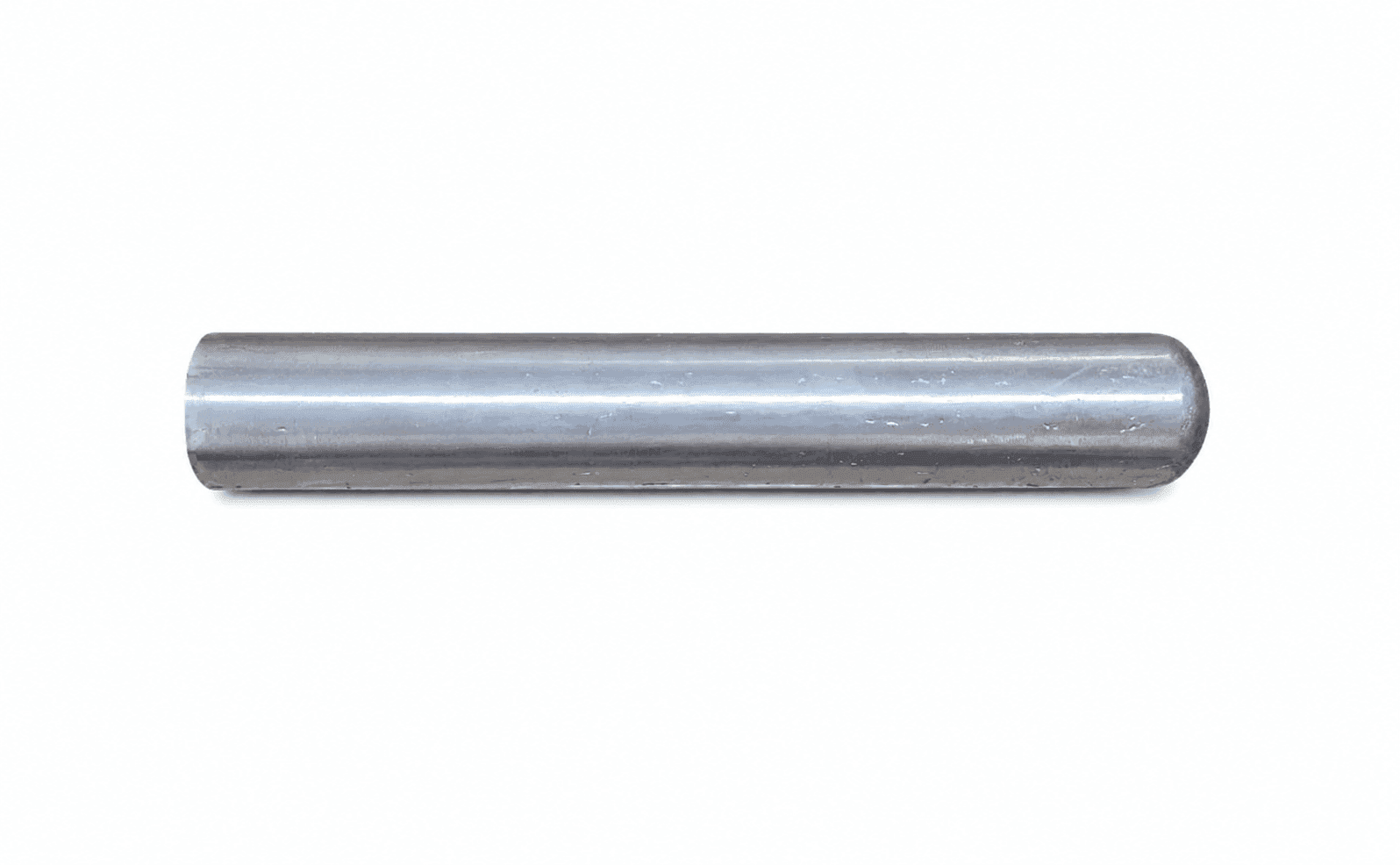

Rely on PML IN825 superalloy for exceptional heat and corrosion resistance across demanding environments.

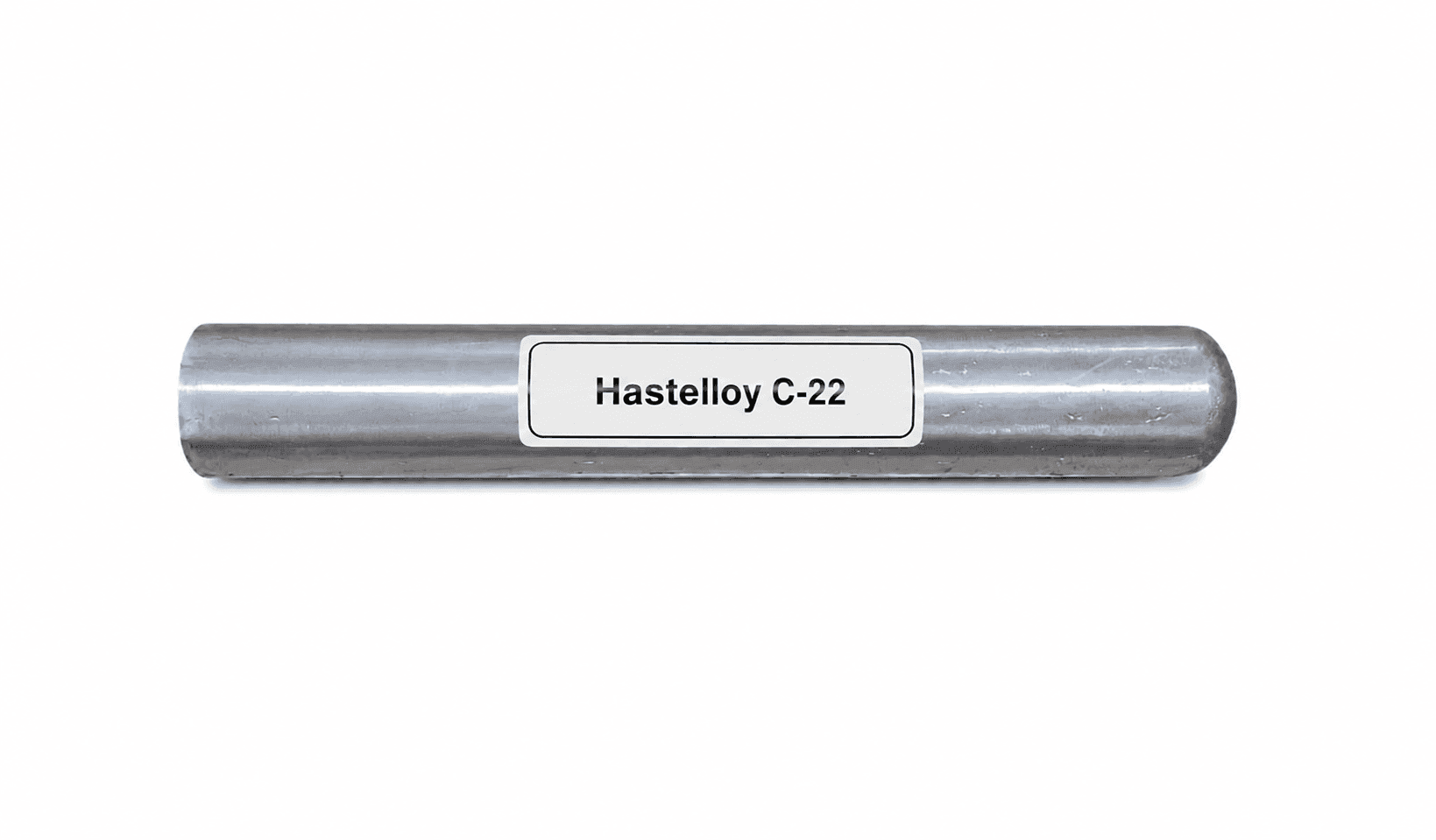

Rely on PML Hastelloy C-22 superalloy for exceptional heat and corrosion resistance across demanding environments.
