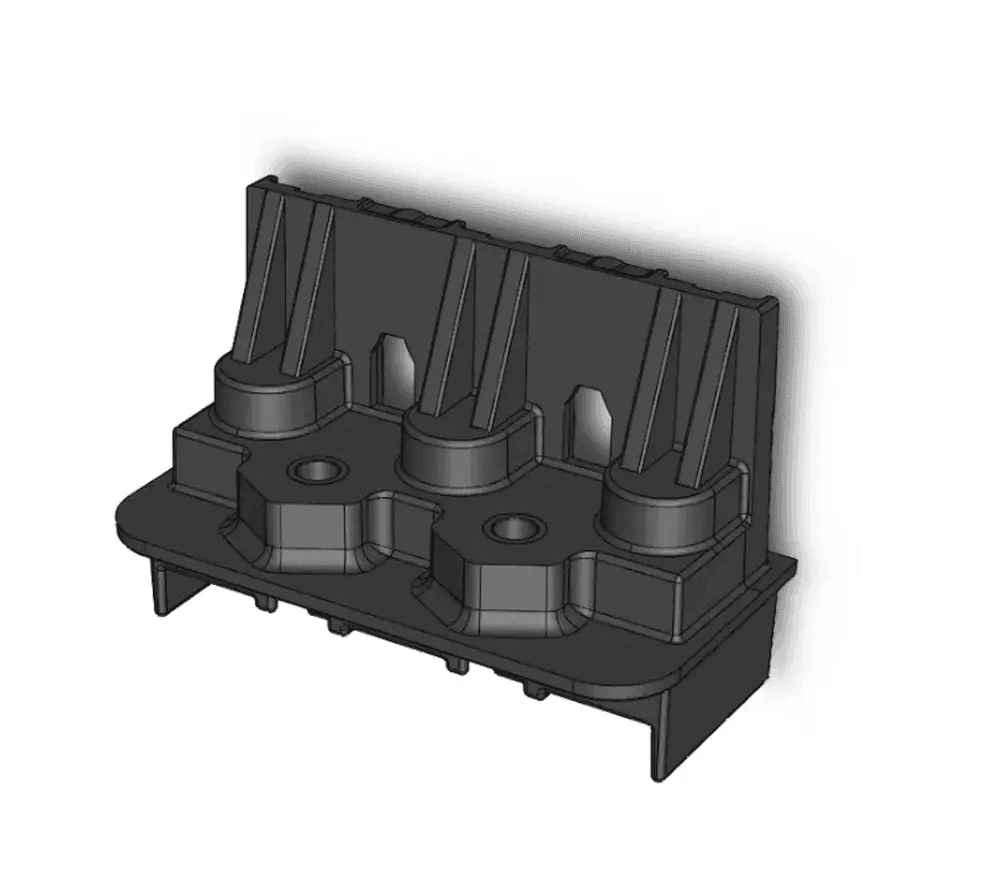

Molded & Overmolded Components
High-Precision Multi-Material Components for Enhanced Performance
Master the connection where high-grade metal meets high-performance polymers.
The insert molding process at PML follows these precision steps:
Metal or plastic insert is accurately positioned in the mold.
The mold closes, securing the insert in place.
Thermoplastic material is injected around the insert.
The part solidifies under controlled cooling.
The molded component is removed from the mold.
Excess material is trimmed, and the part is inspected.
At PML, we specialize in multi-insert moulding with tight tolerances up to ±0.05 mm, depending on raw material grade and part geometry.

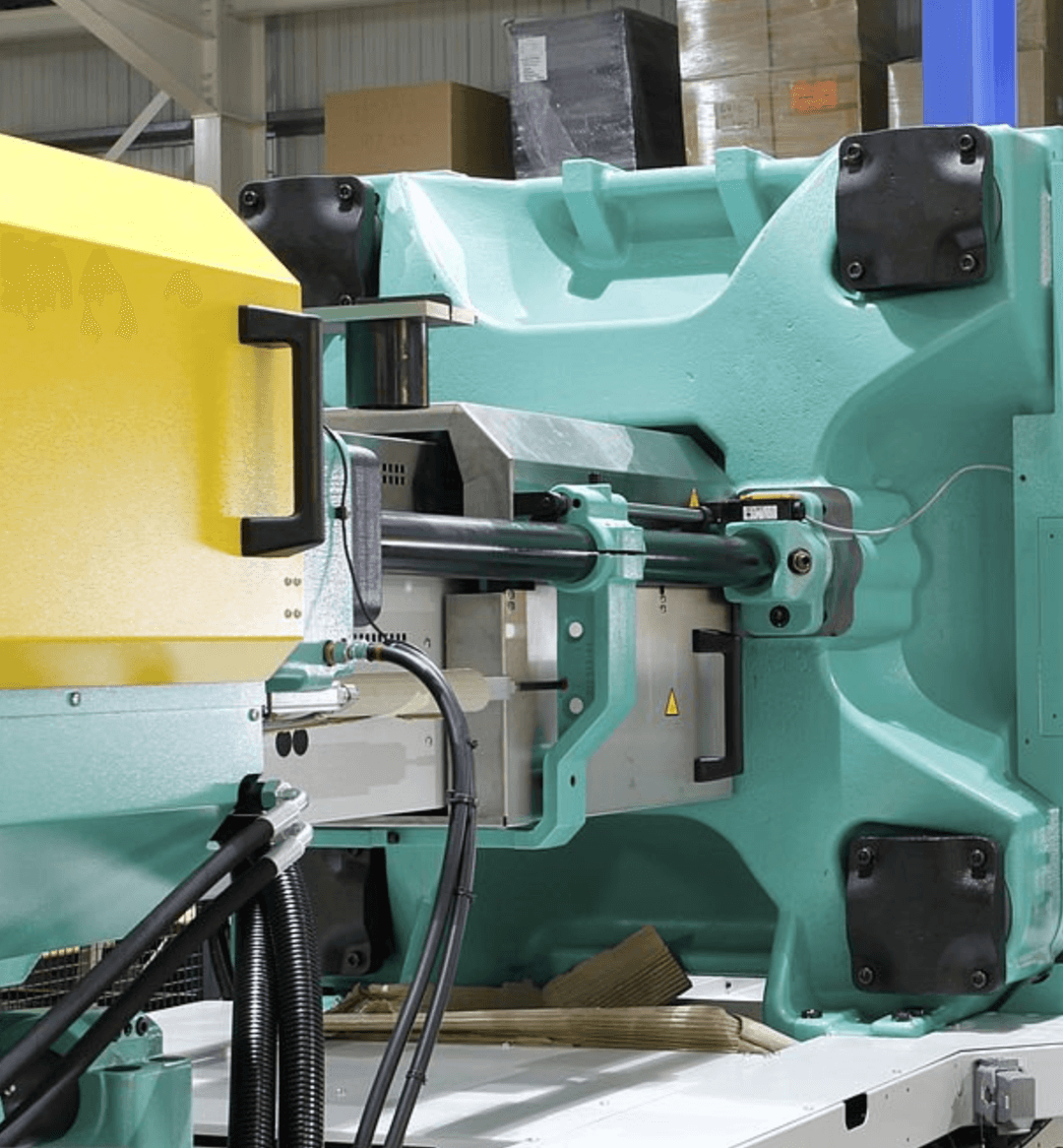

PML is equipped with advanced insert moulding machines for a wide range of component sizes and applications:
| Tool Type | Function |
|---|---|
| Custom Molds | Shape and hold inserts during injection molding |
| Insert Holders | Secure placement of connectors and terminals |
| Injection Mold Cavities | Create complex geometries around inserts |
| Ejection Systems | Remove parts post-cooling with minimal deformation |
| Thermal Regulation Units | Maintain optimal flow and curing conditions |
Glass Filled and Fire Resistant Engineering grade materials:
1
Polybutylene Terephthalate
2
Polyamide (commonly known as Nylon)
3
Polyoxymethylene
4
Acrylonitrile Butadiene Styrene
5
Polyphenylene Sulfide
6
Polyetherimide
7
Polyethylene Terephthalate
8
Polyphthalamide
With over 65 years of manufacturing excellence, PML delivers wire assemblies trusted by OEMs and Tier 1 suppliers across sectors demanding robust performance.
1
Robust, permanent integration between insert and moulded plastic.
2
Supports intricate geometries and multi-insert configurations.
3
Ideal for mechanical loads, vibration, and thermal cycling.
4
Enables high-volume manufacturing with minimal assembly.
5
Inserts provide electrical conductivity, thermal transfer, or mechanical strength.
Insert moulded parts are used across industries for their strength, reliability, and compact form factor:
1
Connectors, housings, switches
2
Circuit board interfaces, electrical connectors
3
Tool handles, appliance parts
4
Functional machine components
With over 65 years of manufacturing excellence, PML delivers Insert Moulded Parts trusted by OEMs and Tier 1 suppliers across sectors demanding robust performance.
ISO 45001
Occupational Health and Safety (OH&S) management systems
ISO 14001
Environmental Management Systems (EMS)
ISO 9001
Quality Management Systems (QMS)
IATF 16949
International Standard for Automotive Management Systems
AS 9100
Aerospace Quality Management System (QMS)
It significantly reduces labor costs and assembly time by creating a finished part in one step, while providing much higher pull-out strength than screws or adhesives.

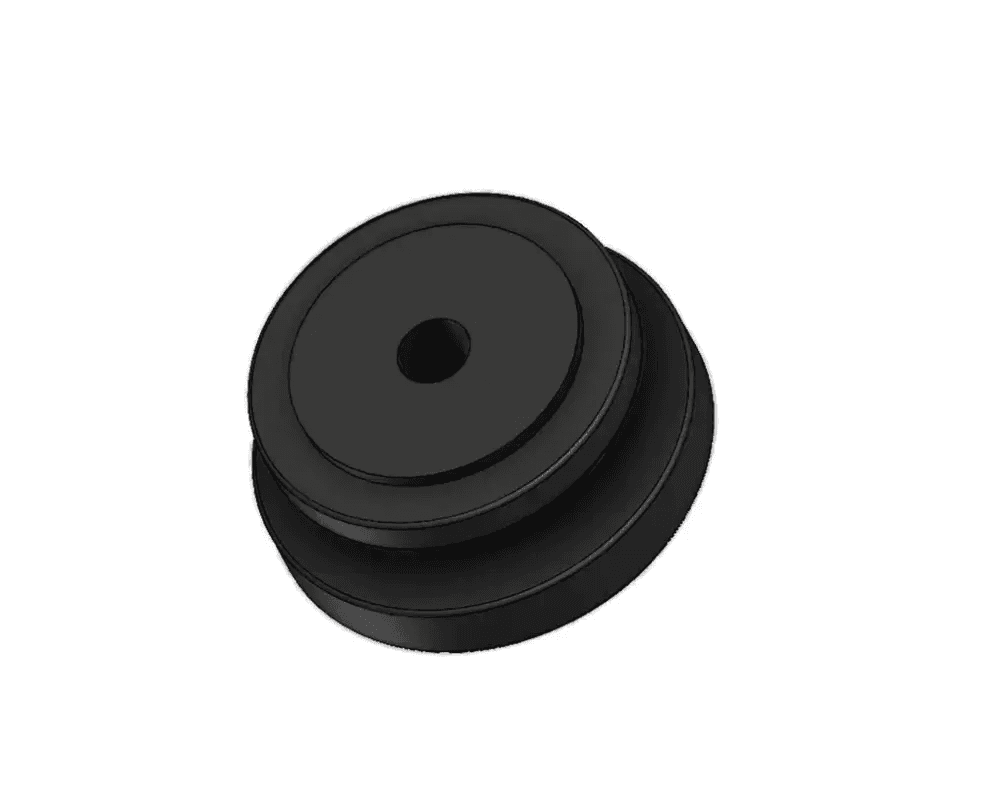

At Permanent Magnets Limited (PML), we manufacture standalone plastic components using high-performance polymers for critical applications across automotive, utility, and industrial sectors.

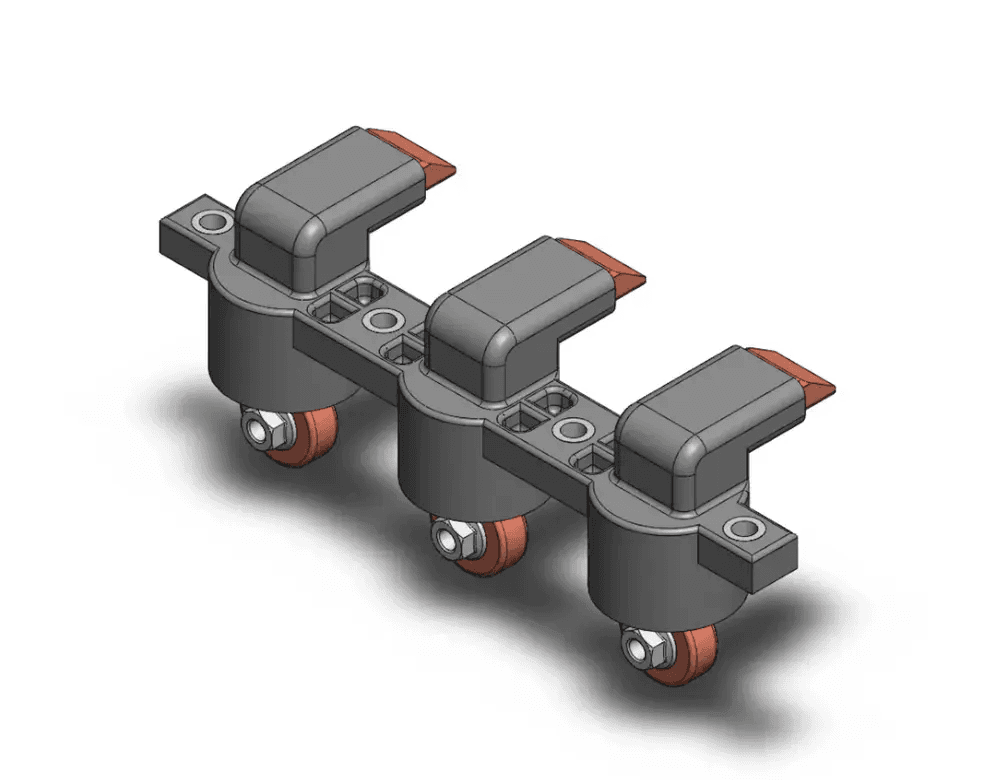

Precision Injection Molding for High-Performance Electrical Applications
