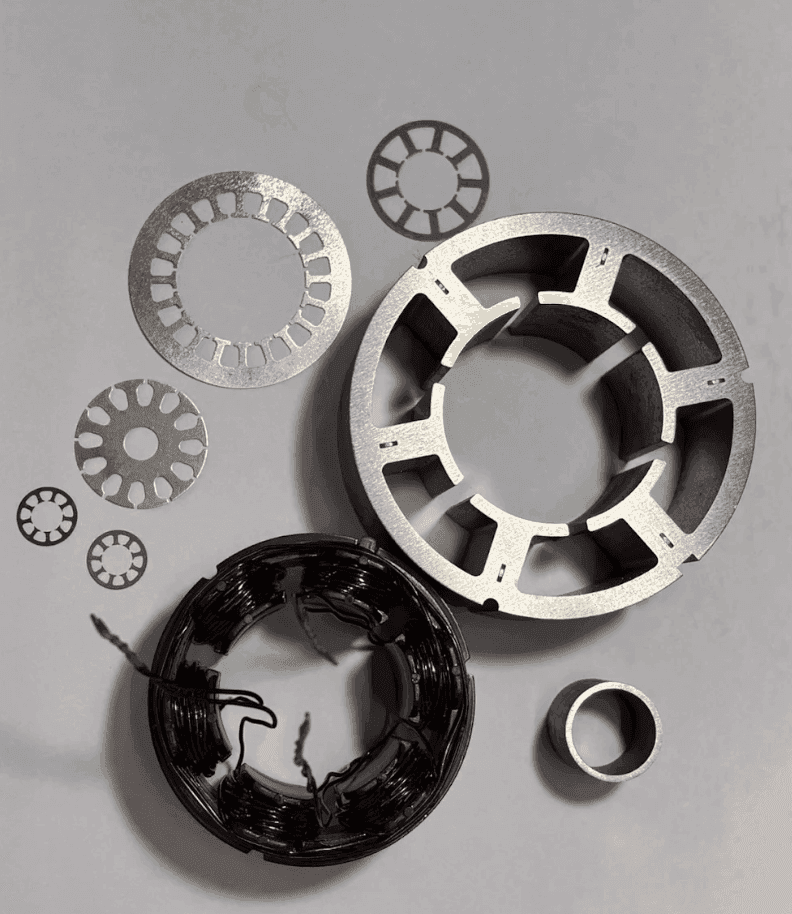

Stator Laminations
Ultra-high permeability magnetic cores engineered for low-field, precision-critical applications.
When your application demands ultra-sensitive magnetic response at low flux densities, not peak torque, Nickel Alloy laminations are the material of choice. PML manufactures high-grade Ni-Fe laminations for engineers who cannot afford magnetic compromise.
Nickel-Iron (Ni-Fe) alloy laminations are the preferred solution when high permeability and low core losses are the design priorities. Unlike Silicon Steel or Cobalt-Iron alloys which are optimized purely for high saturation, the Ni-Fe family offers unparalleled versatility for specialized applications. From 48% Nickel grades, engineered to balance higher saturation levels with exceptional magnetic responsiveness for specialty motors and transformers, to 80% Nickel grades, designed for extreme sensitivity in environments where the magnetic signal is weak or electrical noise must be minimized. Across all grades, these laminations are built for precision instrumentation, sensors, and rotating machines where superior magnetic control is an engineering requirement.
Responds efficiently to very weak magnetic fields, critical for low-excitation motors and sensing applications.
Minimal hysteresis loss, enabling highly efficient operation at low flux densities.
Excellent efficiency at both low and high frequencies.
Consistent performance in thermally and mechanically demanding environments.
Compatible with high-volume stamping processes without sacrificing dimensional precision.
Available in M19 through M47 grades - matched to your specific loss and flux density requirements.
Property | Value |
Thickness | 0.127 mm – 0.35 mm |
Saturation Flux Density | ~0.75 – 1.6 T |
Initial Permeability (μᵢ) | 10,000 – 100,000+ |
Coercivity | < 1 A/m (high-Ni grades) |
Common Alloys | NiFe 48%, NiFe 80%, Supra 50, Supra 50T, Permimphy, 45 Permalloy, 80 Permalloy, HyMu 80 |
1
Alloy composition, geometry, and application sensitivity review.
2
Precision die design for ultra-thin, high-Ni laminations.
3
Precision die design for ultra-thin, high-Ni laminations.

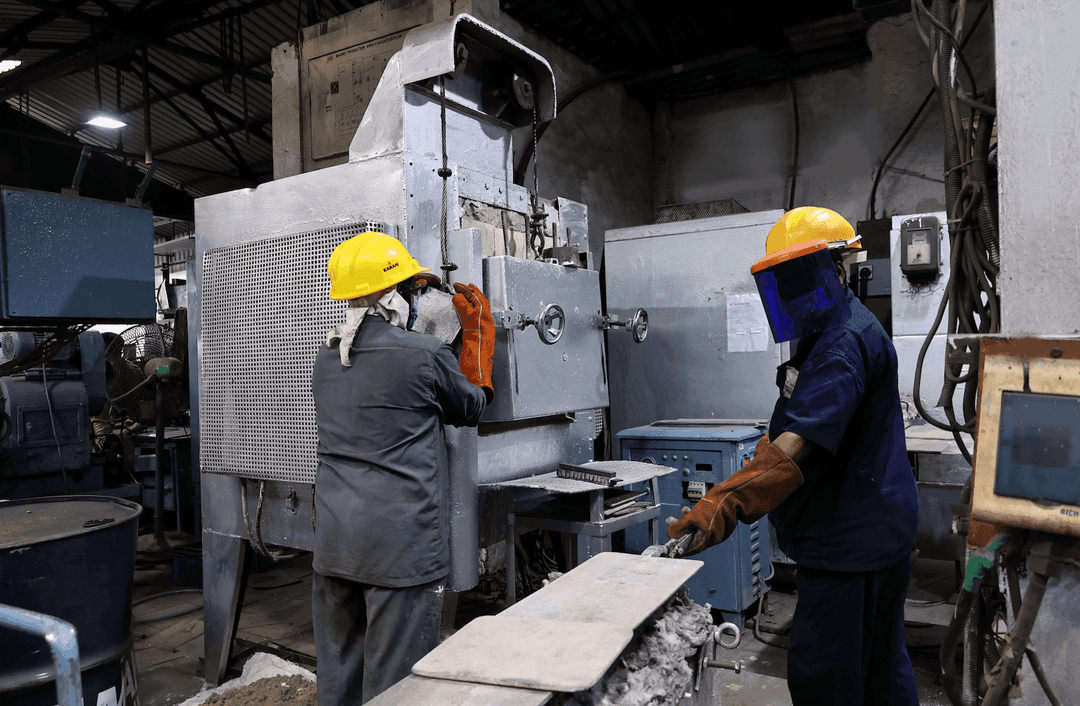

4
ASM 2750E compliant stress relief and optimization.
5
BH loop, coercivity, initial permeability, and full magnetic characterization.
6
Full traceability from raw material mill to finished goods.
1
Resolvers, synchros, and precision torque motors where low-signal magnetic response is critical.
2
Implantable and diagnostic equipment demanding magnetically stable, biocompatible-adjacent soft magnetic cores.
3
Current transformers, flux gate sensors, and precision measurement devices.
4
Low-excitation, high-precision motion control where coercivity and hysteresis must be minimized.
Our engineering team can model the trade-offs for your specific operating conditions.
