Flux Concentrators / Shields
High-Performance Ferromagnetic Shield for Enhanced Magnetic Field Sensing
Optimized for use with Hall effect and AMR sensors, this shield blocks parasitic magnetic fields to ensure clean signal output.

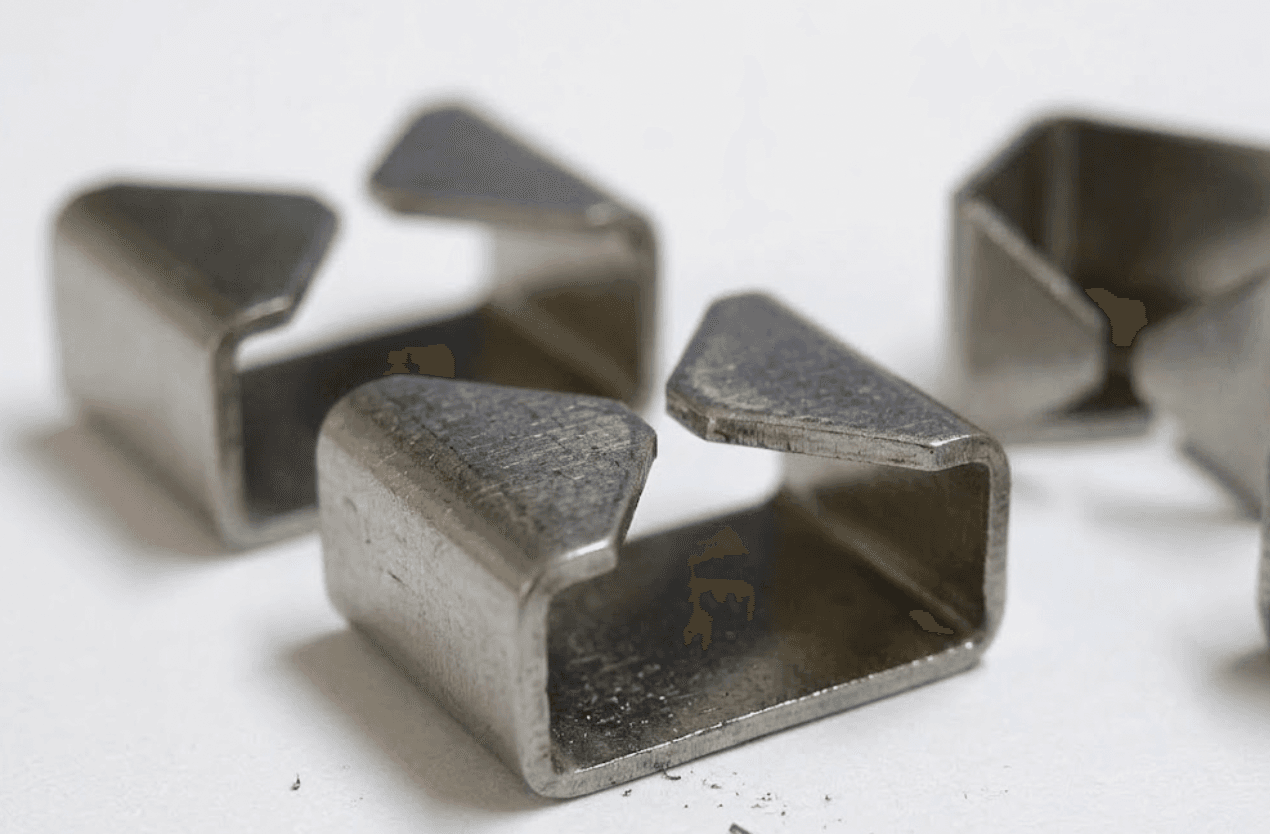

The C-Shape Flux Concentrator is a soft ferromagnetic component engineered to optimize magnetic field sensing in high-precision applications. Standard C-shape geometries are available, with custom sizing options available upon request.
| Magnetic Characteristics | ||
|---|---|---|
| Parameter | Typical Value | Unit |
| Relative Permeability | 100'000 | a.u. |
| Initial Relative Permeability | 7000 | a.u. |
| Saturation Flux Density | 1 | T |
| Hysteresis | 2.8 | A/m |
