Formed / Deep Drawn Shields
High-Performance Magnetic Shielding Components for Sensitive Electronics
Manufactured from high-permeability NiFe soft magnetic alloys, our shields undergo advanced dry hydrogen annealing and are rigorously tested for magnetic and dimensional performance.
PML's magnetic shields, cans, and lids are precision-engineered to protect sensitive electronic components from external magnetic and electromagnetic interference (EMI). PML performs controlled Dry Hydrogen Annealing: relieves internal stresses, re-aligns microstructure, restores magnetic permeability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | NiFe (Soft Magnetic Alloy Steel) |
| Thickness | 0.335 mm to 1.5 mm |
| Width | 3 mm to 150 mm |
| Accuracy | ±0.5 mm |
| Customization | Available |
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | NiFe (Soft Magnetic Alloy steel) |
| Thickness | 0.4 mm to 1 mm |
| Diameter | 5 mm to 100 mm |
| Height | 5 mm to 60 mm |
| Accuracy | ±0.5 mm |
| Customization | Available |
1
2
3
4
5
6
7
1
EV Inverters, Onboard Chargers (OBC), DC-DC Converters, Battery Management Systems
2
Power Inverters, Converters, SMPS, EV Power Modules
3
Smart Energy Meters, AMI Systems, Power Monitoring Units
4
Gyrocompass Systems, INS
5
FOG IMUs, MEMS IMUs, Flight Control Systems
6
Missile GNC, EO/IR Gimbals, INS
7
Downhole navigation systems
8
Tunneling and underground navigation systems
9
MEMS IMUs, Stabilization Systems
10
MRI Systems, CT Scanners, Patient Monitoring Equipment, Diagnostic Devices
1
Application, environment, and shielding objectives defined.
2
Detailed analysis of specifications and constraints.
3
Engineering the optimal manufacturing route.
4
Precision tooling and production workflow setup.
5
High-accuracy shaping with minimal stress induction.
6
Critical step to restore magnetic performance.
7
Magnetic properties verified against specifications.
8
End-to-end material and process tracking.
Magnetic shields and draw cans are enclosures made from soft ferromagnetic materials (like Mu metal) that redirect magnetic flux around sensitive areas, preventing EMI. A draw can is a deep-drawn cylindrical shield, offering consistent wall thickness and superior shielding effectiveness in 3D enclosures.
Compact Ferromagnetic Shield for Planar Current Sensing Applications

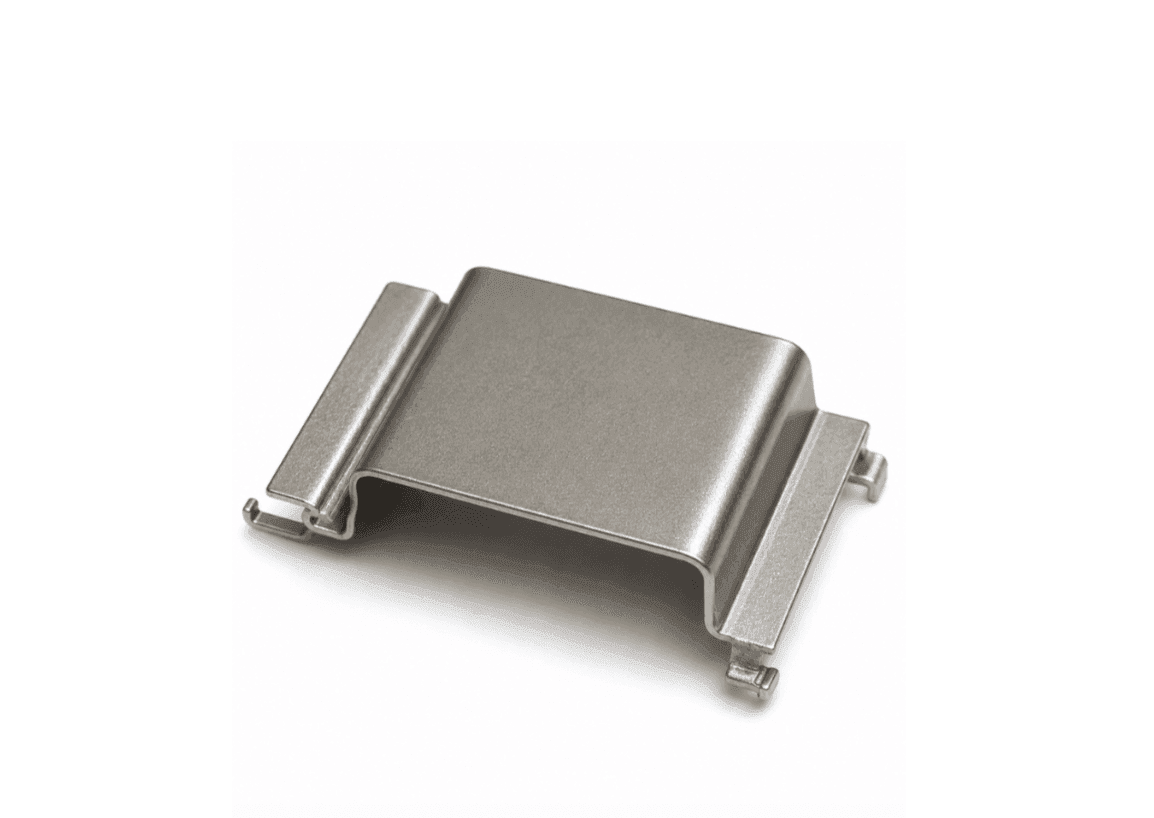

Soft Ferromagnetic Surface-Mount Shield for Current Sensor Applications
High-Performance Flux Concentrator for Contactless Current Sensing
Compact Ferromagnetic Shield for Planar Current Sensing Applications
Soft Ferromagnetic Surface-Mount Shield for Current Sensor Applications
High-Performance Flux Concentrator for Contactless Current Sensing
Pioneering cutting-edge technology to develop reliable, high-performance magnetic components and engineering solutions.
