Designed Turned/Machined Parts
Manufactured from high-quality materials like stainless steel, brass, copper, and aluminum, these pins are made to withstand stress, shear, and dynamic loads in both static and moving assemblies.
Engineered for Precision, Strength & Seamless Alignment Across Critical Assemblies

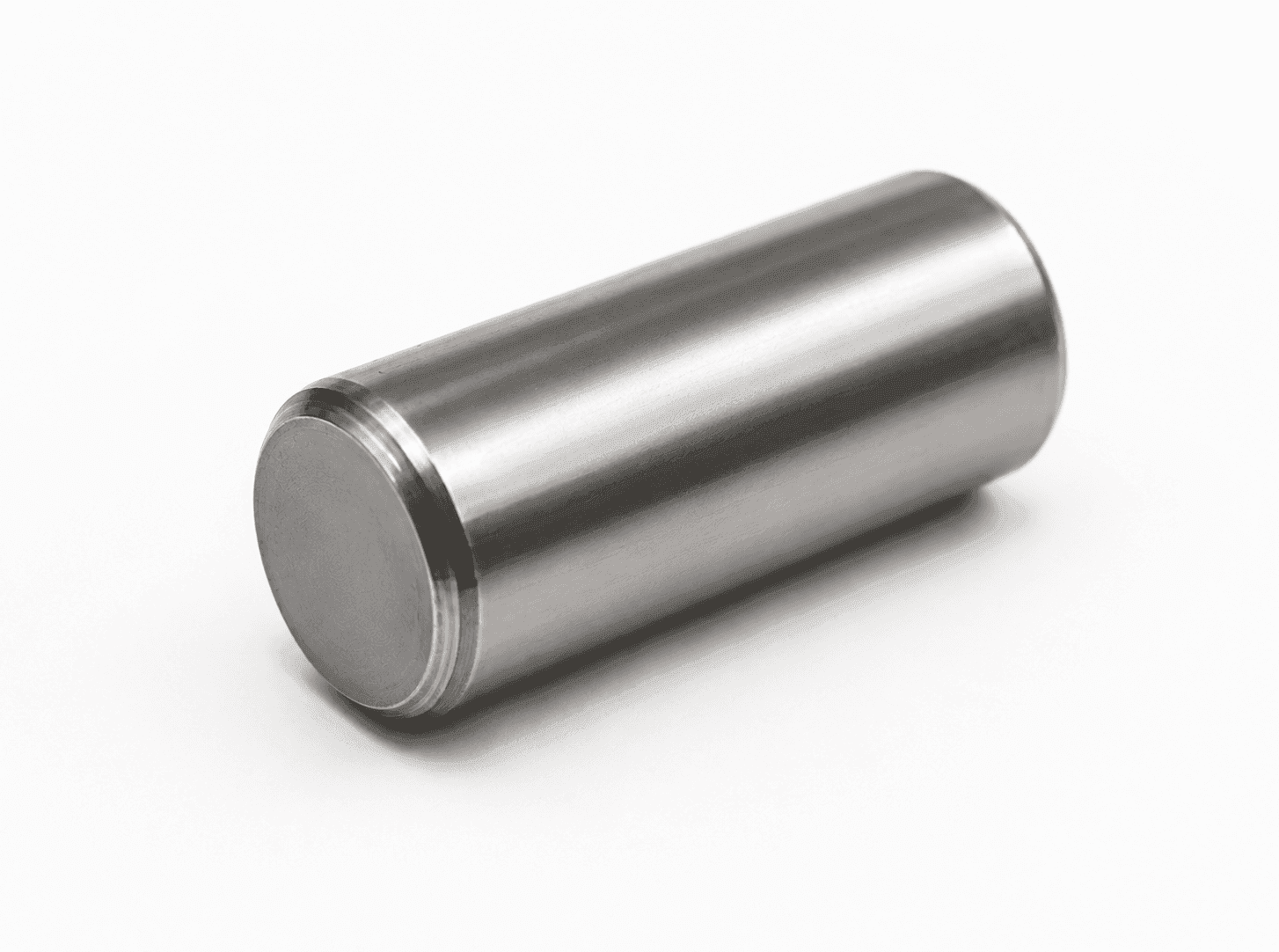

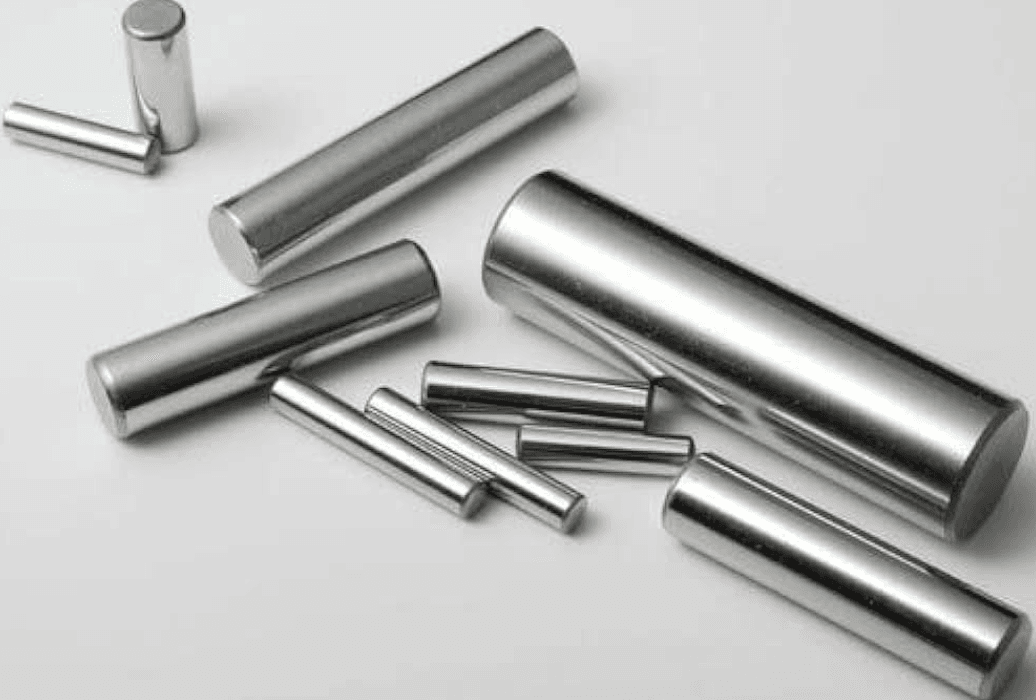

Dowel pins are cylindrical, precision-machined components used to accurately align or join two or more parts. Designed for critical assemblies across automotive, aerospace, and electronic systems, they ensure stability, load sharing, and tight fits with zero compromise on performance.
We begin with certified metals and alloys to ensure dimensional stability, corrosion resistance, and machinability across all production batches.
Bar stock or wire is precision cut to length using high-speed cutting machines to meet dimensional requirements.

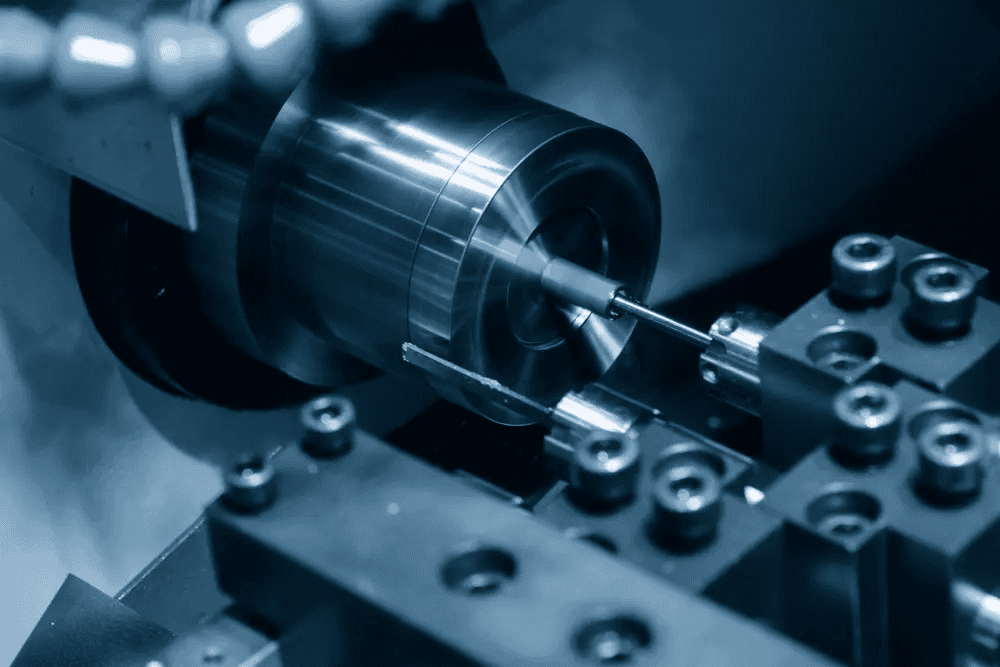

Each pin undergoes centerless grinding or CNC turning to achieve tight tolerances up to ±0.005 mm and superior surface finishes.
Where required, pins are heat-treated to improve hardness, tensile strength, and durability.
Optional passivation, plating, or polishing improves wear resistance and protects against corrosion.
Each dowel pin is checked for concentricity, straightness, and surface integrity to meet international standards.
Pins are packed in anti-corrosive packaging to retain dimensional and surface accuracy during transit.
Ready-to-use parts are shipped on time, ensuring zero assembly delay.
| Parameter | Value |
|---|---|
| Dimensions | 1 mm to 200 mm (custom sizes available) |
| Tolerance | Up to ±0.005 mm |
| Material Options | Stainless Steel, Aluminum, Brass, Copper |
| Finish | As per customer requirement |
| Surface Integrity | Deburred, Polished, or Passivated |
| Property | Typical Range |
|---|---|
| Tensile Strength (Stainless Steel) | Up to 900 MPa |
| Hardness (Heat-treated) | 55–60 HRC |
| Surface Finish | Ra 0.2 to Ra 0.8 |
| Straightness | ≤ 0.01 mm over 100 mm |
| Cylindricity | ≤ 0.005 mm |
1
2
3
4
5
6
1
Used in gearboxes, chassis assemblies, and transmission systems
2
Provides alignment in aircraft frame assemblies and engine components
3
Enables PCB alignment and support in enclosures
4
Ensures connector alignment in switchgear and control panels
With over 65 years of manufacturing excellence, PML delivers Dowel Pins trusted by OEMs and Tier 1 suppliers across sectors demanding robust performance.
ISO 45001
Occupational Health and Safety (OH&S) management systems
ISO 14001
Environmental Management Systems (EMS)
ISO 9001
Quality Management Systems (QMS)
IATF 16949
International Standard for Automotive Management Systems
AS 9100
Aerospace Quality Management System (QMS)
They ensure precise alignment, hold components in fixed positions, and transfer load across mating parts.
